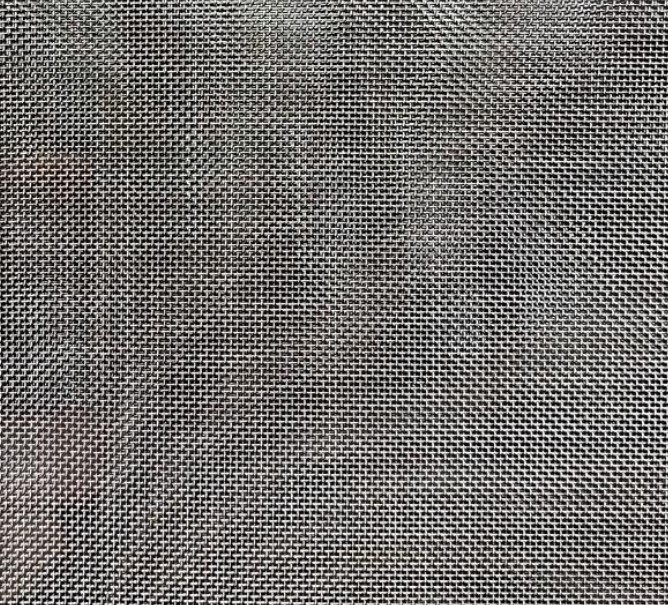

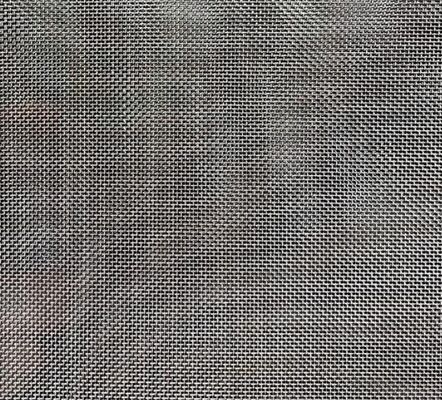

Stainless Steel Woven Wire Mesh with 26mesh
Ürün ayrıntıları
| Malzeme | Paslanmaz çelik | Boyut | 1mx30m |
|---|---|---|---|
| delik boyutu | 0,777 mm | Tel çapı | 0,2 mm |
Ürün Açıklaması
Stainless Steel Woven Wire Mesh with 26mesh
26 Mesh Stainless Steel Woven Wire Mesh is a classic medium-fine industrial mesh with balanced filtration accuracy and fluid permeability. Professionally woven with premium stainless steel wires via standard plain weave technology, it boasts uniform mesh openings, tight weaving structure and stable dimensional stability. This specification fills the performance gap between 25mesh and 27mesh mesh, featuring high practicality and wide compatibility. It is a mainstream universal mesh for industrial filtration, particle screening and equipment protection, widely recognized in global industrial manufacturing and processing industries.
Standard Specifications
| Wire Diameter (mm) | Mesh Aperture (mm) |
|---|---|
| 0.19 | 0.79 |
| 0.25 | 0.73 |
| 0.27 | 0.71 |
| 0.3 | 0.68 |
| 0.35 | 0.63 |
| 0.4 | 0.58 |
The above wire diameters and apertures are theoretical values. There will be slight deviations between actual and theoretical dimensions. The wire tends to become marginally thinner due to stretching during weaving, and the actual aperture will be slightly larger than the theoretical size. These are normal occurrences.
Core Features
- Balanced Filtration & Flow: Optimized aperture size ensures stable impurity interception while maintaining excellent liquid and air permeability, no easy clogging.
- Superior Corrosion Resistance: Premium stainless steel materials resist oxidation, acid, alkali and salt corrosion, suitable for harsh working environments.
- Durable & Stable: Tight weaving structure provides high tensile strength and impact resistance, not easy to deform or break during long-term operation.
- High Precision & Cleanable: Uniform mesh holes guarantee consistent filtration effect; smooth polished surface is easy to clean and reusable.
- Food & Industrial Grade Safety: 304/316L food-grade materials are non-toxic, pollution-free and compliant with industrial hygiene standards.
Main Applications
- Petrochemical & Industrial Filtration: Pre-filtration of crude oil, filtration of chemical liquid and slurry, separation of medium-sized catalyst particles.
- Food & Beverage Industry: Filtration of edible oil, fruit juice, syrup and wine; grading and screening of flour, starch and grain powder.
- Water Treatment & Environmental Protection: Industrial circulating water, well water and river water impurity filtration, sewage pre-treatment and landscape water purification.
- Machinery & Equipment Protection: Air intake dustproof nets for air compressors and fans, lubricating oil filtration and equipment ventilation & heat dissipation protection.
- Chemical & Plastic Industry: Screening and impurity removal of plastic particles, chemical powder and granular materials.
