Stainless Steel Woven Wire Mesh with 13Mesh

  • Stainless Steel Woven Wire Mesh with 13Mesh
Menşe yeri Çin
Min sipariş miktarı MV2401CP
Fiyat Based on quantity
Ambalaj bilgileri İçeride bir kağıt tüp, dışarıda plastik film veya su geçirmez kağıt, ardından tahta sandık veya pale
Teslim süresi BİR HAFTA
Ödeme koşulları T/T
Ürün ayrıntıları
Malzeme Paslanmaz çelik Boyut 1mx30m
örgü numarası 13 ağ gözü
Mesaj bırakın
Ürün Açıklaması

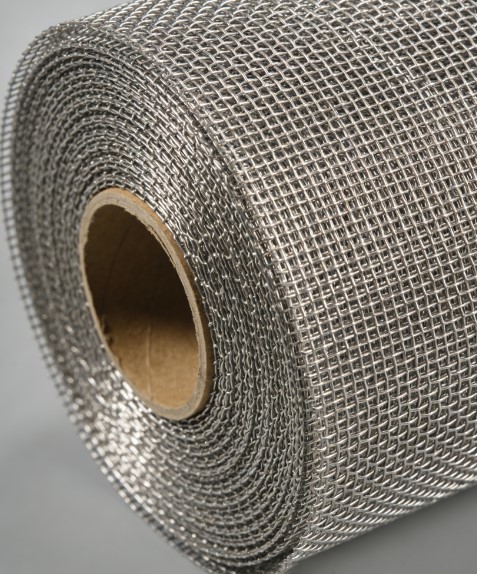

Stainless Steel Woven Wire Mesh with 13Mesh
This 13 Mesh Stainless Steel Woven Wire Screen delivers finer precision for applications requiring tighter particle control. Woven with high-tensile stainless steel wires, it provides a robust yet precise square mesh opening. Slightly denser than 12 mesh, it offers enhanced filtration accuracy while maintaining excellent flow rates. Its clean, uniform weave ensures consistent performance for critical sizing and separation tasks, backed by the material's inherent durability against corrosion and abrasion.
Primary Uses and Applications
  • Fine Screening: Essential for finer particle separation, often used in the production of abrasives, minerals, and fine powders.
  • Precision Filtration: Applied in chemical processing, paint, and coating industries to remove finer contaminants from fluids.
  • Food & Beverage Processing: Suitable for sifting finer food ingredients, sugar, flour, and spices.
  • Laboratory & Testing: Used in test sieves for precise particle size analysis (grading).
  • Decking & Sifting: Ideal for vibratory screen decks and sifting machines where a specific, slightly finer cut-point is required.
Specifications
Mesh Count 13 mesh per linear inch (both warp and weft)
Wire Diameter Common options include 0.025" (0.63mm) or 0.023" (0.58mm), affecting the final opening size
Opening Size Approximately 0.077" (1.95mm) with a standard 0.025" wire
Weave Type Plain Square Weave
Material 304, 304L, 316, 316L Stainless Steel
Width & Length Supplied in rolls or custom panels
Note: Opening size is smaller than a typical 12 mesh opening.
