Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing

  • Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
  • Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
  • Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing
Menşe yeri Çin Anpingi
Marka adı QIANPU
Sertifika ISO
Min sipariş miktarı 5 Rulo
Fiyat negotiable
Ambalaj bilgileri İçeride bir kağıt tüp, dışarıda plastik film veya su geçirmez kağıt, ardından tahta sandık veya pale
Teslim süresi BİR HAFTA
Ödeme koşulları T/T, Western Union, L/C
Ürün ayrıntıları
Malzeme SS304, SS304L, SS316, SS316L Dokuma tipi Düz Dokuma / Dimi Dokuma / Hollandalı Dokuma
Tel çapı 0,15 mm – 2,0 mm Ağ sayımı 2 – 400 ağ gözü
açılış boyutu 0,038 mm – 10 mm Yüzey İşlem Parlak Tavlı / Turşu Pasivasyonu
Standart boyut 1m×30m rulo (özelleştirilebilir) Başvuru Yiyecek ve İçecek Filtrasyonu, İlaç Eleme, Endüstriyel Filtre, İnşaat Çitleri, Güvenlik Pencere Koru
Vurgulamak

food grade stainless steel wire mesh

,

304/316 stainless steel filtration mesh

,

woven wire mesh for fencing
Mesaj bırakın
Ürün Açıklaması
Plain Dutch Weave has a specialized structure with larger warp wires than weft wires. It is woven by interlacing a few warp wires with tightly packed weft wires, forming a dense mesh with invisible apertures. Its plain pattern ensures even wire distribution, resulting in a smooth, easy-to-clean surface.
Twill Dutch Weave has an upgraded structure, also with larger warp wires than weft wires. Tightly packed weft wires are woven in a twill pattern (each weft passes over two warp wires and under one, or vice versa), creating a dense mesh with subtle diagonal textures, enhanced rigidity and wear resistance.

- *Material*: SS304 / SS304L / SS316 / SS316L
- *Weaving Type*: Plain Weave / Twill Weave / Dutch Weave

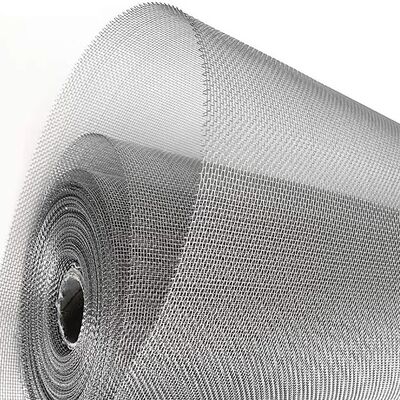

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 0



Main Applications
Our stainless steel woven wire mesh is widely used in:
- *Food & Beverage*: Bakery equipment, beverage filtration, food processing machinery
- *Pharmaceutical*: Medicine sieving, clean room filtration, pharmaceutical machinery components
- *Construction*: Concrete reinforcement, building facades, security window guards
- *Industrial & Security*: Machine guards, liquid filtration, mine sieving, pet enclosures

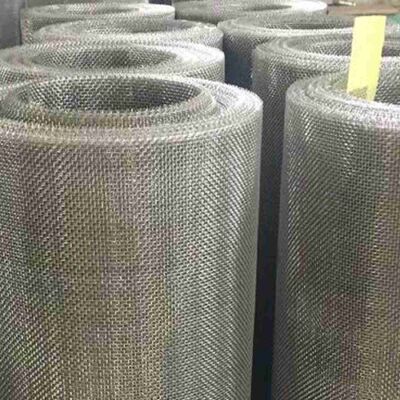

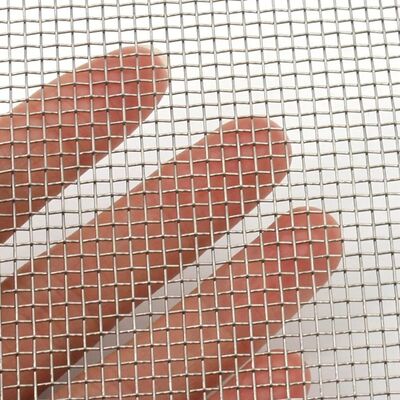

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 1Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 2



Packing:

In rolls, wrapped with waterproof paper then covered with hessian cloth. Special packing may be arranged if necessary.

Food Grade 304/316 Stainless Steel Woven Wire Mesh for Filtration & Fencing 3
