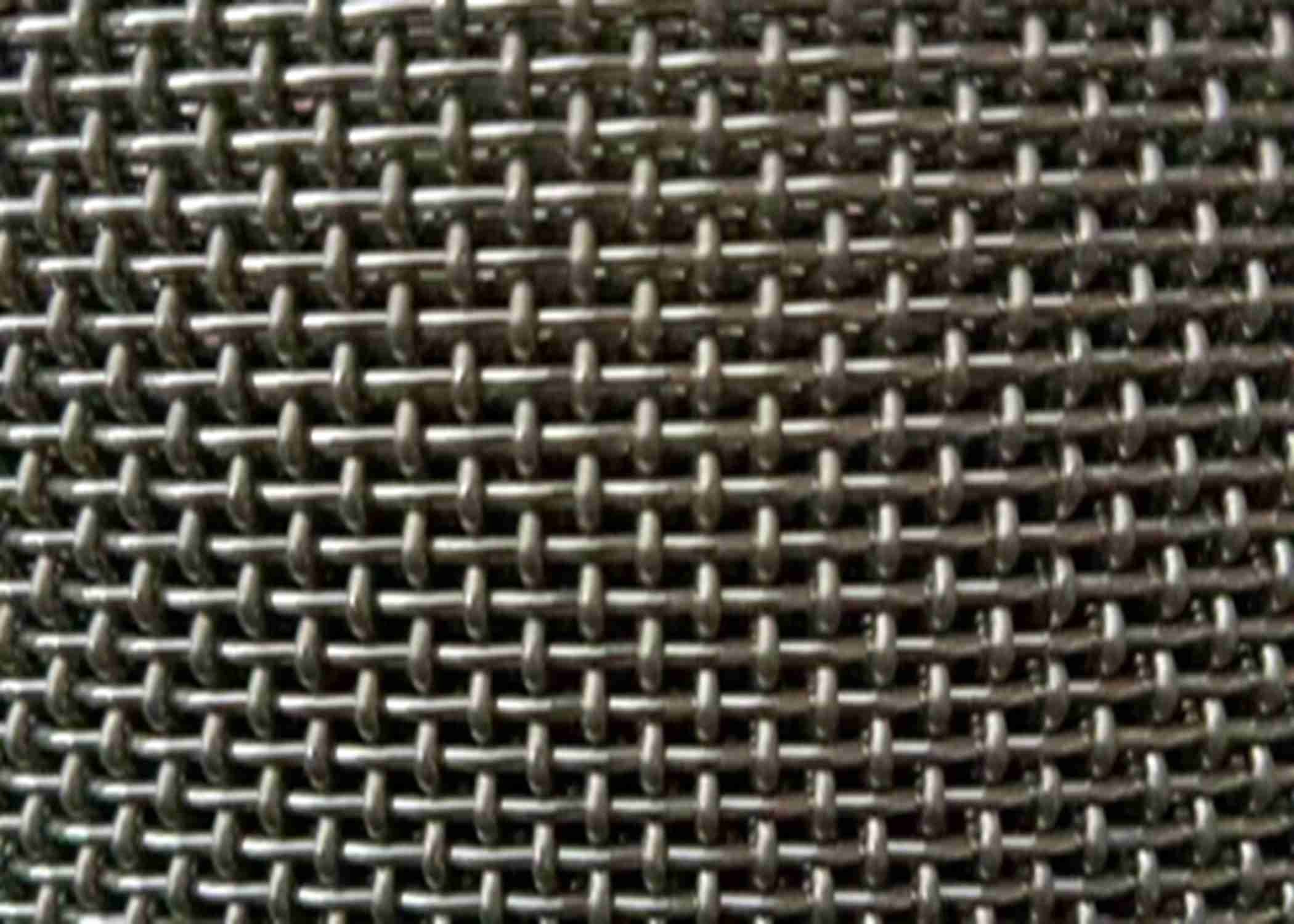

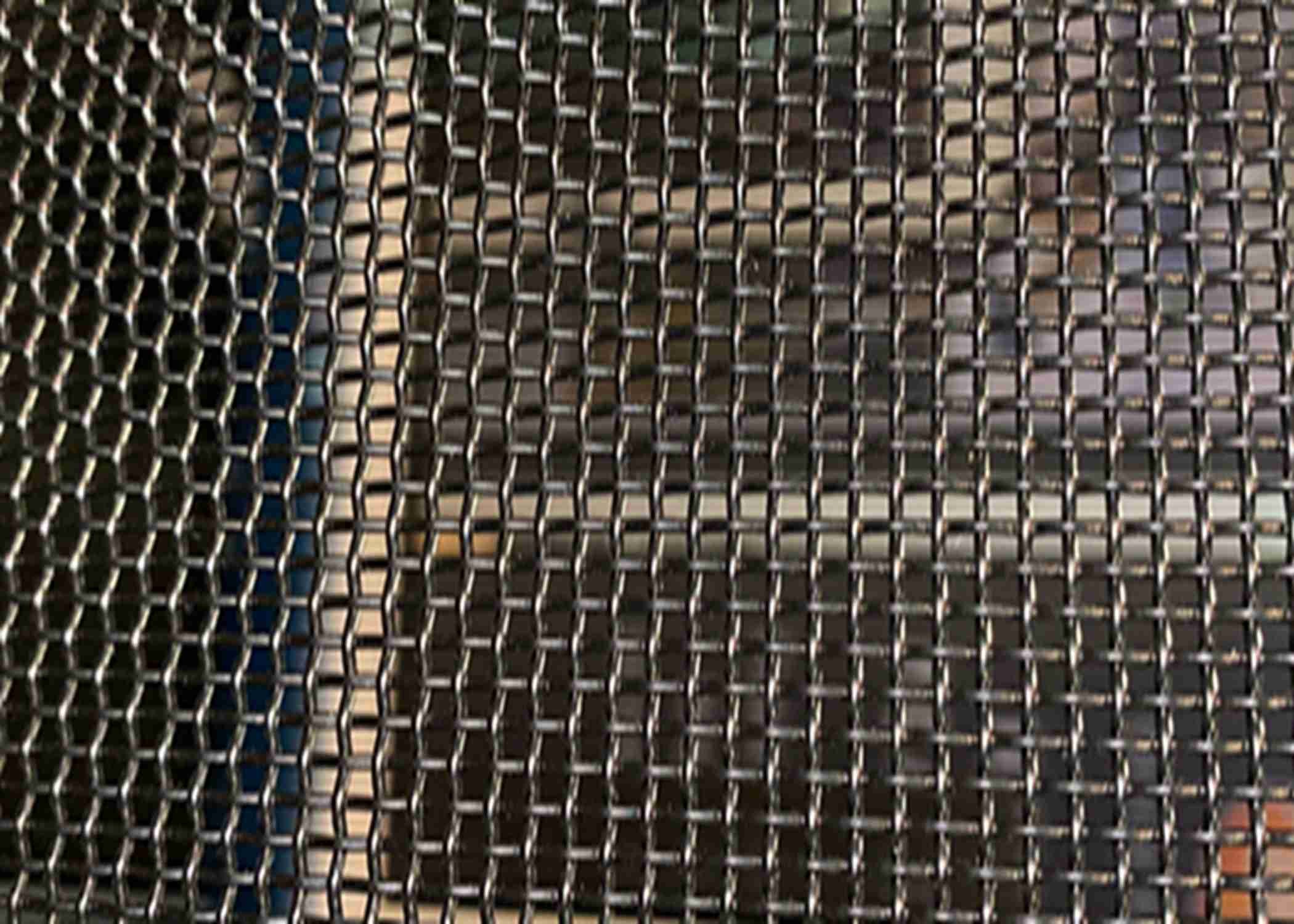

Paslanmaz çelik 904L Dokumalı Tel Ağı Üstün Korozyona Direnci

Menşe yeri	Çin Anpingi
Marka adı	QIANPU
Sertifika	ISO
Min sipariş miktarı	5 rulo
Fiyat	negotiable
Ambalaj bilgileri	İçeride bir kağıt tüp, dışarıda plastik film veya su geçirmez kağıt, ardından tahta sandık veya pale
Teslim süresi	Hemen!
Ödeme koşulları	T/T, Western Union, L/C

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

Ürün ayrıntıları

Ürün Adı	SS Dokuma Hasır	Malzeme	Paslanmaz çelik 304
Yüzey	Parlak gümüş	Açıklık Şekli	Karesi
Kafes Sayıları	40	tel çapı	0,25 mm
Rulo Genişliği	1m, 1,22m, 1,6m dipçik	Standart Uzunluk	30m
Properity	Superior Corrosion Resistance	Uygulama	Filtrasyon
Vurgulamak	Paslanmaz çelik 904L dokuma tel ağı , 904L Dokumalı Tel Ağı , Üstün korozyon direnci dokuma tel ağı

Mesaj bırakın

Ürün Açıklaması

Paslanmaz Çelik 904L Dokumalı Tel Ağı Yüksek Korozyona Direnci Sağlar

Giriş:

Paslanmaz çelik 904L, düşük karbon içeriğine sahip istikrarlı olmayan austenitik paslanmaz çeliktir.Özellikle klorür içeren agresif ortamlardaBu malzeme tel örgü yapmak için kullanıldığında, korozyona dayanıklı özellikleri miras alır ve korozyona dayanıklılığın kritik olduğu zorlu uygulamalar için uygundur.

Bir uygulama için paslanmaz çelik 904L tel örgülerini değerlendirirken korozyon direnci, sıcaklık maruziyeti,ve mekanik özellikleri iş için doğru malzeme olduğunu sağlamak içinEk olarak, paslanmaz çelik tel örgülerinde uzmanlaşmış üreticiler veya tedarikçilerle görüşmek, bu malzemenin uygulamanız için uygunluğu hakkında daha fazla rehberlik sağlayabilir.

Plain Weave Mesh Özellikleri:

Kılavuz	Tel D		Açıklık L		Açık Alan	Metrekare Ağırlık
Açıklıklar/inç	mm	inç	mm	inç	%	kgs	Kilo.
3	1.60	0.0629	6.866	0.2703	65.77	3.84	8.44
3	1.40	0.0551	7.066	0.2782	69.66	2.94	6.46
3	1.20	0.0472	7.266	0.2860	73.66	2.16	4.75
3	1.00	0.0393	7.466	0.2939	77.77	1.50	3.30
3	0.90	0.0354	7.566	0.2979	79.87	1.21	2.67
3	0.80	0.0314	7.666	0.3018	81.99	0.96	2.11
3	0.70	0.0275	7.766	0.3057	84.14	0.73	1.60
4	1.20	0.0472	5.15	0.2027	65.77	2.88	6.33
4	1.00	0.0393	5.35	0.2106	70.98	2.00	4.40
4	0.90	0.0354	5.45	0.2145	73.66	1.62	3.56
4	0.80	0.0314	5.55	0.2185	76.39	1.28	2.81
4	0.70	0.0275	5.65	0.2224	79.16	0.98	2.15
4	0.60	0.0236	5.75	0.2263	81.99	0.72	1.58
5	1.00	0.0393	4.08	0.1606	64.50	2.50	5.50
5	0.90	0.0354	4.18	0.1645	67.70	2.02	4.45
5	0.80	0.0314	4.28	0.1685	70.98	1.60	3.52
5	0.70	0.0275	4.38	0.1724	74.33	1.22	2.68
5	0.60	0.0236	4.48	0.1763	77.77	0.90	1.98
5	0.50	0.0196	4.58	0.1803	81.28	0.62	1.37
6	0.90	0.0354	3.333	0.1312	62.00	2.43	5.34
6	0.80	0.0314	3.433	0.1351	65.77	1.92	4.22
6	0.70	0.0275	3.533	0.1391	69.66	1.47	3.23
6	0.60	0.0236	3.633	0.1430	73.66	1.08	2.37
6	0.50	0.0196	3.733	0.1469	77.77	0.75	1.65
8	0.90	0.0354	2.275	0.0895	51.34	3.24	7.12
8	0.80	0.0314	2.375	0.0935	55.95	2.56	5.63
8	0.70	0.0275	2475	0.0974	60.76	1.96	4.31
8	0.60	0.0236	2575	0.1013	65.77	1.44	3.16
8	0.50	0.0196	2675	0.1053	70.98	1.00	2.20
10	0.90	0.0354	1.640	0.0645	41.68	4.05	8.91
10	0.80	0.0314	1.740	0.0685	46.92	3.2	7.04
10	0.70	0.0275	1.840	0.0724	52.47	2.45	5.39
10	0.60	0.0236	1.940	0.0763	58.33	1.8	3.96
10	0.50	0.0196	2.040	0.0803	64.50	1.25	2.75
10	0.40	0.0157	2.140	0.0842	70.98	0.80	1.76
12	0.80	0.0314	1.316	0.0518	38.69	3.84	8.44
12	0.70	0.0275	1.416	0.0557	44.79	2.94	6.46
12	0.60	0.0236	1.516	0.0597	51.34	2.16	4.75
12	0.50	0.0196	1.616	0.0636	58.33	1.50	3.30
12	0.40	0.0157	1.716	0.0675	65.77	0.96	2.11
12	0.30	0.0118	1.816	0.0715	73.66	0.54	1.18
14	0.70	0.0275	1.114	0.0438	37.72	3.43	7.54
14	0.60	0.0236	1.214	0.0478	44.79	2.52	5.54
14	0.50	0.0196	1.314	0.0517	52.47	1.75	3.85
14	0.40	0.0157	1.414	0.0556	60.76	1.12	2.46
14	0.35	0.0137	1.464	0.0576	65.13	0.85	1.87
14	0.30	0.0118	1.514	0.0596	69.66	0.63	1.38
14	0.27	0.0106	1.544	0.0607	72.45	0.51	1.12
14	0.25	0.0098	1.564	0.0615	74.33	0.43	0.94
14	0.23	0.0090	1.584	0.0623	76.25	0.37	0.81
14	0.21	0.0082	1.604	0.0631	78.19	0.30	0.67
14	0.19	0.0074	1.624	0.0639	80.15	0.25	0.55
16	0.60	0.0236	0.987	0.0388	38.69	2.88	6.33
16	0.50	0.0196	1.087	0.0428	46.92	2.00	4.40
16	0.40	0.0157	1.187	0.0467	55.95	1.28	2.81
16	0.35	0.0137	1.237	0.0487	60.76	0.98	2.15
16	0.30	0.0118	1.287	0.0506	65.77	0.72	1.58
16	0.27	0.0106	1.317	0.0518	68.87	0.58	1.27
16	0.25	0.0098	1.337	0.0526	70.98	0.50	1.10
16	0.23	0.0090	1.357	0.0534	73.12	0.42	0.92
16	0.21	0.0082	1.377	0.0542	75.29	0.35	0.77
16	0.19	0.0074	1.397	0.0550	77.49	0.28	0.61
18	0.50	0.0196	0.911	0.0358	41.68	2.25	4.95
18	0.40	0.0157	1.011	0.0398	51.34	1.44	3.16
18	0.35	0.0137	1.061	0.0417	56.54	1.10	2.42
18	0.30	0.0118	1.111	0.0437	62.00	0.81	1.78
18	0.27	0.0106	1.141	0.0449	65.39	0.65	1.44
18	0.25	0.0098	1.161	0.0457	67.70	0.56	1.23
18	0.23	0.0090	1.181	0.0465	70.05	0.47	1.04
18	0.21	0.0082	1.201	0.0472	72.45	0.39	0.87
18	0.19	0.0074	1.221	0.0480	74.88	0.32	0.71
18	0.17	0.0066	1.241	0.0488	77.35	0.26	0.57
18	0.15	0.0059	1.261	0.0496	79.87	0.20	0.44
20	0.50	0.0196	0.770	0.0303	36.75	2.50	5.50
20	0.45	0.0177	0.820	0.0322	41.68	2.02	4.44
20	0.40	0.0157	0.870	0.0342	46.92	1.60	3.52
20	0.35	0.0137	0.920	0.0362	52.47	1.22	2.69
20	0.30	0.0118	0.970	0.0381	58.33	0.90	1.98
20	0.27	0.0106	1.000	0.0393	62.00	0.72	1.60
20	0.25	0.0098	1.020	0.0401	64.50	0.62	1.36
20	0.23	0.0090	1.040	0.0409	67.05	0.52	1.16
20	0.21	0.0082	1.060	0.0417	69.66	0.44	0.97
20	0.19	0.0074	1.080	0.0425	72.31	0.36	0.79
20	0.17	0.0066	1.100	0.0433	75.02	0.28	0.63
20	0.15	0.0059	1.120	0.0440	77.77	0.22	0.49
22	0.40	0.0157	0.754	0.0297	42.71	1.76	3.87
22	0.35	0.0137	0.804	0.0316	48.56	1.34	2.96
22	0.30	0.0118	0.854	0.0336	54.78	0.99	2.17
22	0.27	0.0106	0.884	0.0348	58.69	0.80	1.76
22	0.25	0.0098	0.904	0.0356	61.38	0.68	1.49
22	0.23	0.0090	0.924	0.0363	64.12	0.58	1.27
22	0.21	0.0082	0.944	0.0371	66.93	0.48	1.05
22	0.19	0.0074	0.964	0.0379	69.79	0.39	0.87
22	0.17	0.0066	0.984	0.0387	72.71	0.31	0.69
22	0.15	0.0059	1.004	0.0395	75.70	0.24	0.54
24	0.35	0.0137	0.708	0.0278	44.79	1.47	3.23
24	0.30	0.0118	0.758	0.0298	51.34	1.08	2.37
24	0.27	0.0106	0.788	0.0310	55.48	0.87	1.92
24	0.25	0.0098	0.808	0.0318	58.33	0.75	1.65
24	0.23	0.0090	0.828	0.0326	61.25	0.63	1.38
24	0.21	0.0082	0.848	0.0333	64.25	0.52	1.14
24	0.19	0.0074	0.868	0.0341	67.31	0.43	0.95
24	0.17	0.0066	0.888	0.0349	70.45	0.34	0.76
24	0.15	0.0059	0.908	0.0357	73.66	0.27	0.59
24	0.13	0.0051	0.928	0.0365	76.94	0.20	0.44
24	0.12	0.0047	0.938	0.0369	78.60	0.17	0.38
30	0.35	0.0137	0.496	0.0195	34.41	1.83	4.02
30	0.30	0.0118	0.546	0.0215	41.68	1.35	2.97
30	0.27	0.0106	0.576	0.0227	46.39	1.09	2.40
30	0.25	0.0098	0.596	0.0234	49.66	0.93	2.04
30	0.23	0.0090	0.616	0.0242	53.04	0.79	1.73
30	0.21	0.0082	0.636	0.0250	56.54	0.66	1.45
30	0.19	0.0074	0.656	0.0258	60.15	0.54	1.18
30	0.17	0.0066	0.676	0.0266	63.87	0.43	0.95
30	0.15	0.0059	0.696	0.0274	67.70	0.33	0.74
30	0.13	0.0051	0.716	0.0282	71.64	0.25	0.55
30	0.12	0.0047	0.726	0.0286	73.66	0.21	0.47
32	0.28	0.0110	0.513	0.0202	41.89	1.25	2.75
32	0.25	0.0098	0.543	0.0214	46.92	1.00	2.20
32	0.23	0.0090	0.563	0.0221	50.44	0.84	1.86
32	0.21	0.0082	0.583	0.0229	54.08	0.70	1.55
32	0.19	0.0074	0.603	0.0237	57.85	0.57	1.27
32	0.17	0.0066	0.623	0.0245	61.75	0.46	1.01
32	0.15	0.0059	0.643	0.0253	65.77	0.36	0.79
35	0.30	0.0118	0.425	0.0167	34.41	1.57	3.46
35	0.28	0.0110	0.445	0.0175	37.72	1.37	3.01
35	0.25	0.0098	0.475	0.0187	42.96	1.09	2.40
35	0.23	0.0091	0.496	0.0195	46.66	0.93	2.04
35	0.21	0.0082	0.515	0.0203	50.49	0.77	1.69
35	0.19	0.0074	0.535	0.0210	54.49	0.63	1.38
35	0.17	0.0066	0.555	0.0218	58.63	0.50	1.11
35	0.15	0.0059	0.575	0.0226	62.93	0.39	0.86
40	0.30	0.0118	0.335	0.0131	27.83	1.8	3.96
40	0.27	0.0106	0.365	0.0143	33.03	1.45	3.20
40	0.25	0.0098	0.385	0.0151	36.75	1.25	2.75
40	0.23	0.0090	0.405	0.0159	40.67	1.05	2.31
40	0.21	0.0082	0.425	0.0167	44.79	0.88	1.94
40	0.19	0.0074	0.445	0.0175	49.11	0.72	1.58
40	0.17	0.0066	0.465	0.0183	53.62	0.57	1.27
40	0.15	0.0059	0.485	0.0190	58.33	0.45	0.99
40	0.13	0.0051	0.505	0.0198	63.24	0.33	0.74
40	0.12	0.0047	0.515	0.0202	65.77	0.28	0.63
50	0.25	0.0098	0.258	0.0101	25.79	1.56	3.43
50	0.23	0.0090	0.278	0.0109	29.94	1.32	2.90
50	0.21	0.0082	0.298	0.0117	34.41	1.10	2.42
50	0.19	0.0074	0.318	0.0125	39.18	0.90	1.98
50	0.18	0.0070	0.328	0.0129	41.68	0.81	1.78
50	0.17	0.0066	0.338	0.0133	44.26	0.72	1.58
50	0.15	0.0059	0.358	0.0140	49.66	0.56	1.23
50	0.13	0.0051	0.378	0.0148	55.36	0.42	0.92
50	0.12	0.0047	0.388	0.0152	58.33	0.36	0.79
60	0.23	0.0090	0.193	0.0076	20.85	1.58	3.49
60	0.21	0.0082	0.213	0.0083	25.39	1.32	2.91
60	0.19	0.0074	0.233	0.0091	30.38	1.08	2.37
60	0.17	0.0066	0.253	0.0099	35.81	0.86	1.90
60	0.15	0.0059	0.273	0.0107	41.68	0.67	1.47
60	0.13	0.0051	0.293	0.0115	48.01	0.50	1.11
60	0.12	0.0047	0.303	0.0119	51.34	0.43	0.95
80	0.13	0.0051	0.187	0.0073	34.87	0.67	1.48
80	0.12	0.0047	0.197	0.0077	38.69	0.57	1.25
80	0.10	0.0039	0.217	0.0085	46.92	0.40	0.88
80	0.09	0.0035	0.227	0.0089	51.34	0.32	0.71
100	0.10	0.0039	0.154	0.0060	36.75	0.50	1.10
100	0.08	0.0031	0.174	0.0068	46.92	0.32	0.70
120	0.09	0.0035	0.121	0.0047	33.03	0.48	1.06
120	0.08	0.0031	0.131	0.0051	38.69	0.38	0.83
120	0.07	0.0027	0.141	0.0055	44.79	0.29	0.64
120	0.06	0.0023	0.151	0.0059	51.34	0.21	0.47
120	0.05	0.0019	0.161	0.0063	58.33	0.15	0.33
150	0.06	0.0023	0.109	0.0043	41.68	0.27	0.59
150	0.065	0.0025	0.104	0.0041	37.96	0.31	0.69
165	0.063	0.0024	0.090	0.0035	34.89	0.32	0.72
165	0.06	0.0023	0.093	0.0036	37.23	0.29	0.65
165	0.05	0.0019	0.103	0.0040	45.58	0.20	0.45
180	0.05	0.0019	0.091	0.0035	41.68	0.22	0.48
200	0.05	0.0019	0.077	0.0030	36.75	0.25	0.55
200	0.04	0.0015	0.087	0.0034	46.93	0.16	0.35
250	0.04	0.0015	0.061	0.0024	36.75	0.20	0.44
300	0.04	0.0015	0.044	0.0017	27.83	0.24	0.52

Twill Weave Mesh Özellikleri:

Kılavuz	Tel D		Açıklık L		Açık Alan	Metrekare Ağırlık
Açıklıklar/inç	mm	inç	mm	inç	%	kgs	Kilo.
40	0.30	0.0118	0.335	0.0131	27.83	1.80	3.96
40	0.27	0.0106	0.365	0.0143	33.03	1.45	3.20
40	0.25	0.0098	0.385	0.0151	36.75	1.25	2.75
40	0.23	0.0090	0.405	0.0159	40.67	1.05	2.31
40	0.21	0.0082	0.425	0.0167	44.79	0.88	1.94
40	0.19	0.0074	0.445	0.0175	49.11	0.72	1.58
40	0.17	0.0066	0.465	0.0183	53.62	0.57	1.27
40	0.15	0.0059	0.485	0.0190	58.33	0.45	0.99
50	0.25	0.0098	0.258	0.0101	25.79	1.56	3.43
50	0.23	0.0090	0.278	0.0109	29.94	1.32	2.90
50	0.21	0.0082	0.298	0.0117	34.41	1.10	2.42
50	0.19	0.0074	0.318	0.0125	39.18	0.90	1.98
50	0.18	0.0070	0.328	0.0129	41.68	0.81	1.78
50	0.17	0.0066	0.338	0.0133	44.26	0.72	1.58
50	0.15	0.0059	0.358	0.0140	49.66	0.56	1.23
60	0.23	0.0090	0.193	0.0076	20.85	1.58	3.49
60	0.21	0.0082	0.213	0.0083	25.39	1.32	2.91
60	0.19	0.0074	0.233	0.0091	30.38	1.08	2.37
60	0.17	0.0066	0.253	0.0099	35.81	0.86	1.90
60	0.15	0.0059	0.273	0.0107	41.68	0.67	1.47
60	0.13	0.0051	0.293	0.0115	48.01	0.50	1.11
60	0.12	0.0047	0.303	0.0119	51.34	0.43	0.95
80	0.15	0.0059	0.167	0.0065	27.83	0.9	1.98
80	0.18	0.0070	0.137	0.0054	18.75	1.29	2.85
80	0.13	0.0051	0.187	0.0073	34.87	0.67	1.48
80	0.12	0.0047	0.197	0.0077	38.69	0.57	1.25
80	0.10	0.0039	0.217	0.0085	46.92	0.40	0.88
100	0.10	0.0039	0.154	0.0060	36.75	0.50	1.10
100	0.14	0.0055	0.114	0.0044	20.14	0.98	2.15
100	0.12	0.0047	0.134	0.0052	27.83	0.72	1.58
120	0.12	0.0047	0.091	0.0036	18.75	0.86	1.90
120	0.10	0.0039	0.111	0.0043	27.83	0.6	1.32
120	0.09	0.0035	0.121	0.0047	33.03	0.48	1.06
120	0.08	0.0031	0.131	0.0051	38.69	0.38	0.83
150	0.08	0.0031	0.089	0.0035	27.83	0.48	1.05
150	0.07	0.0027	0.099	0.0039	34.41	0.36	0.80
150	0.06	0.0023	0.109	0.0043	41.68	0.27	0.59
180	0.065	0.0026	0.076	0.0030	29.47	0.38	0.83
180	0.06	0.0023	0.081	0.0031	33.03	0.32	0.71
180	0.05	0.0019	0.091	0.0035	41.68	0.22	0.48
200	0.05	0.0019	0.077	0.0030	36.75	0.25	0.55
200	0.06	0.0023	0.067	0.0026	27.83	0.36	0.79
250	0.05	0.0019	0.051	0.0020	25.79	0.31	0.68
250	0.04	0.0015	0.061	0.0024	36.75	0.20	0.44
300	0.04	0.0015	0.044	0.0017	27.83	0.24	0.52
325	0.035	0.0013	0.043	0.0016	30.48	0.19	0.41
325	0.04	0.0015	0.038	0.0015	23.83	0.26	0.57
400	0.03	0.0011	0.033	0.0013	27.83	0.18	0.39
500	0.025	0.0009	0.025	0.0010	25.79	0.15	0.33
600	0.018	0.0007	0.024	0.0009	33.03	0.09	0.21
635	0.015	0.0005	0.025	0.0009	39.06	0.07	0.15

Gereksinimlerinize göre diğer özellikler.

Paslanmaz çelik 904L Dokumalı Tel Ağı Üstün Korozyona Direnci 0

Paslanmaz çelik 904L Dokumalı Tel Ağı Üstün Korozyona Direnci 1

Malzemeler:

904L

Özellikleri:

İşte paslanmaz çelik 904L tel örgülerinin bazı özellikleri ve hususları:

Korozyona Direnci: Paslanmaz çelik 904L, özellikle deniz suyu, asitler,ve diğer saldırgan medya.
Yüksek Alaşım İçeriği: Paslanmaz çelik 904L, olağanüstü korozyon direnci özelliklerine katkıda bulunan yüksek miktarda krom, nikel, molibden ve bakır içerir.
Asit Direnci: Bu malzeme sülfürik asit, fosforik asit ve diğer asitli çözeltilere karşı son derece dirençlidir.
Yüksek Sıcaklığa Direniş: Paslanmaz çelik 904L yüksek sıcaklıklara dayanabilir ve yüksek sıcaklıklarda bulunan uygulamalar için uygundur.
Kaynatılabilirlik: Paslanmaz çelik 904L, yaygın teknikler kullanarak kaynaklanabilirken, korozyon direncini korumak için önlemler alınmalıdır.Örneğin düşük ısı girişi ve eşleşen dolgu metallerini kullanmak gibi..
Uygulamalar: Paslanmaz çelik 904L tel örgü, kimyasal işleme, petrokimya, ilaç, petrol ve gaz, pulp ve kağıt,ve korozyon direnci çok önemli olan tuzdan arındırma tesisleri.
Dayanıklılık: Yüksek alaşım içeriği nedeniyle, paslanmaz çelik 904L tel örgüsü dayanıklı ve uzun ömürlüdür ve sert ortamlar için güvenilir bir çözüm sağlar.
Maliyet: Paslanmaz çelik 904L, daha yüksek alaşım içeriği ve özel özellikleri nedeniyle 304 ve 316 gibi standart austenitik paslanmaz çeliklerden daha pahalıdır.

Uygulamalar:

Sıvı paslanmaz çelik ağlı ekran filtre ve koruyucu dekoratif, madencilik, petrol, kimyasal, gıda, tıp, makine üretim, inşaat, dekorasyon,Elektronik, havacılık ve diğer endüstriler.

Paketleme:

Paslanmaz çelik 904L Dokumalı Tel Ağı Üstün Korozyona Direnci 2

Etiketler:
